Catenary System

Explore Collection, Applications, and Specification Details

Security Bollards Beyond Safety Image

Less Clutter. More light.

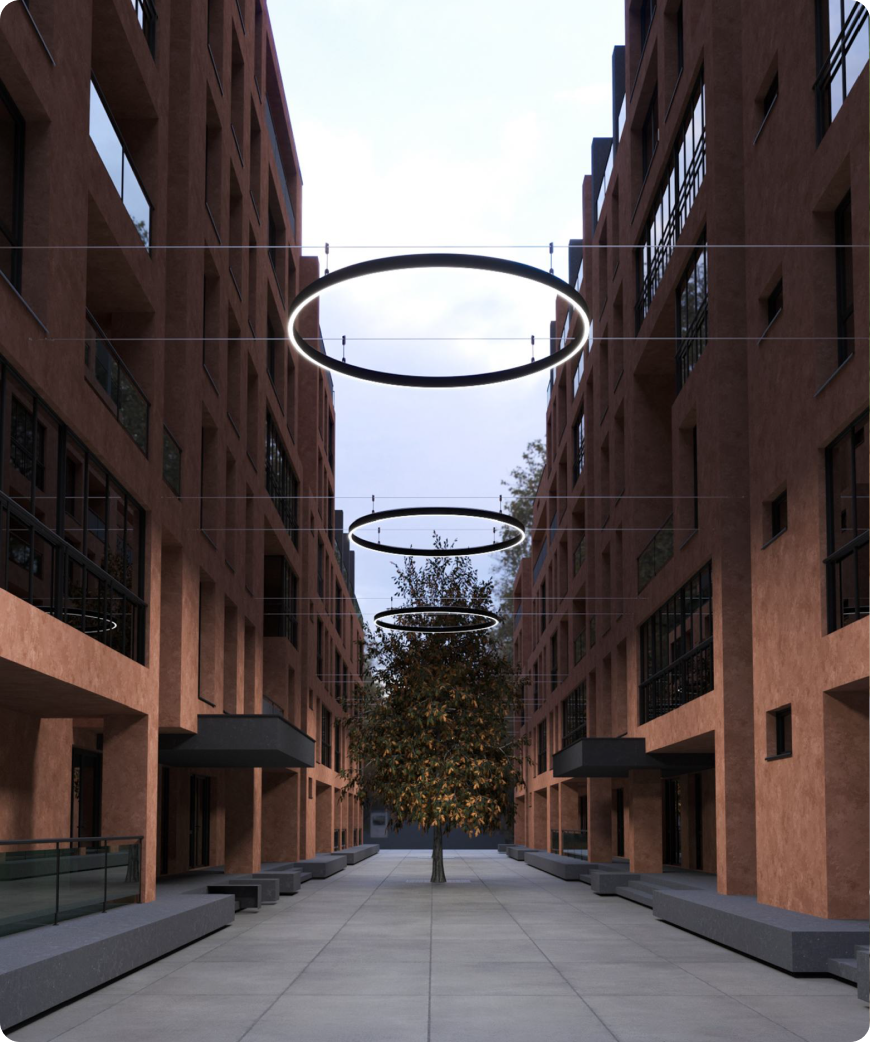

Catenary lighting systems suspend luminaires between poles or structures, lifting the light source overhead.
The result — a system that disappears into space.

Why catenary?

  • 1. Cleaner environments
  • 2. Flexible layouts
  • 3. Design integration
  • 4. Efficient coverage
  • 5. Stable performance (anti-wind, anti-vibration)

What’s included:

  • Luminaires — specified for your project
  • Support poles or attachment points
  • Cables and tensioning systems
  • All required hardware — nothing left to source

We handle the hard part.

Full engineering and specification support — start to finish.

See Catenary Pendant Collection

Two WORLDS of catenary Lighting. ONE EXPERTISE

Catenary lighting systems are designed for two distinct worlds, and we proudly support both.

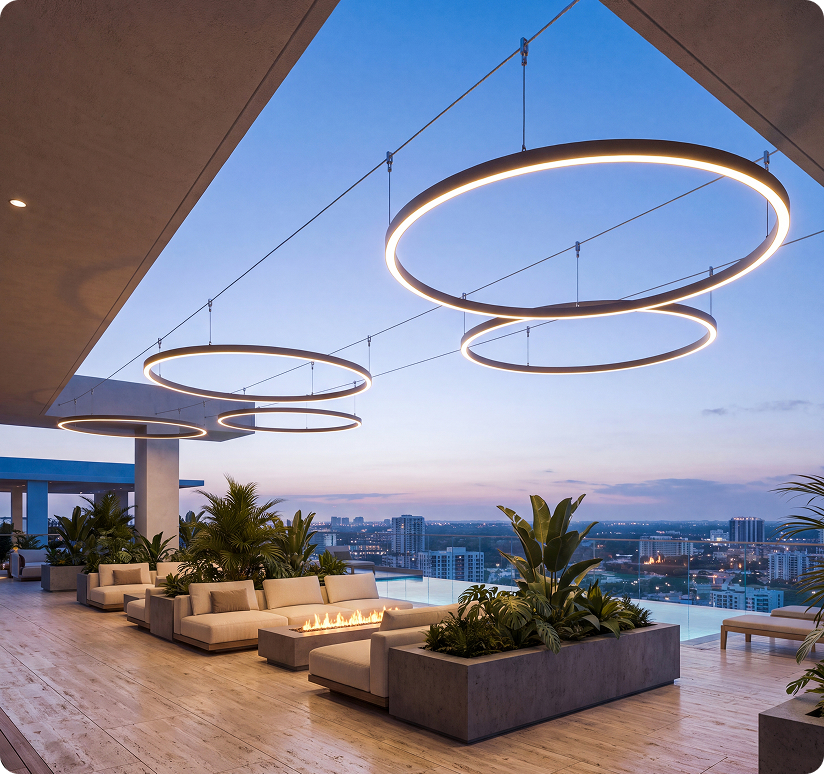

1 hOSPITALITY & cORPORATE dEVELOPMENTS

Security Bollards Beyond Safety Image

RESTAURANTS

  • Outdoor dining areas & alleyway cafes
  • Central-spine canopy lighting
  • Warm, dimmable ambience

Residential Communities

  • Gated communities and HOAs
  • Clubhouses and shared amenities
  • Pedestrian paths and common spaces

CORPORATE CAMPUSES

  • Campus walkways and plazas
  • Controlled light spill near office windows
  • Dual-use cable infrastructure for signage

PARKS & RECREATION

  • Wildlife-sensitive illumination
  • Open ground preserved for events
  • Reduced sky glow and light pollution

SINGLE-FAMILY HOUSING

  • Backyard and patio applications
  • Simple house-to-pergola cable runs
  • Low-voltage LED solutions

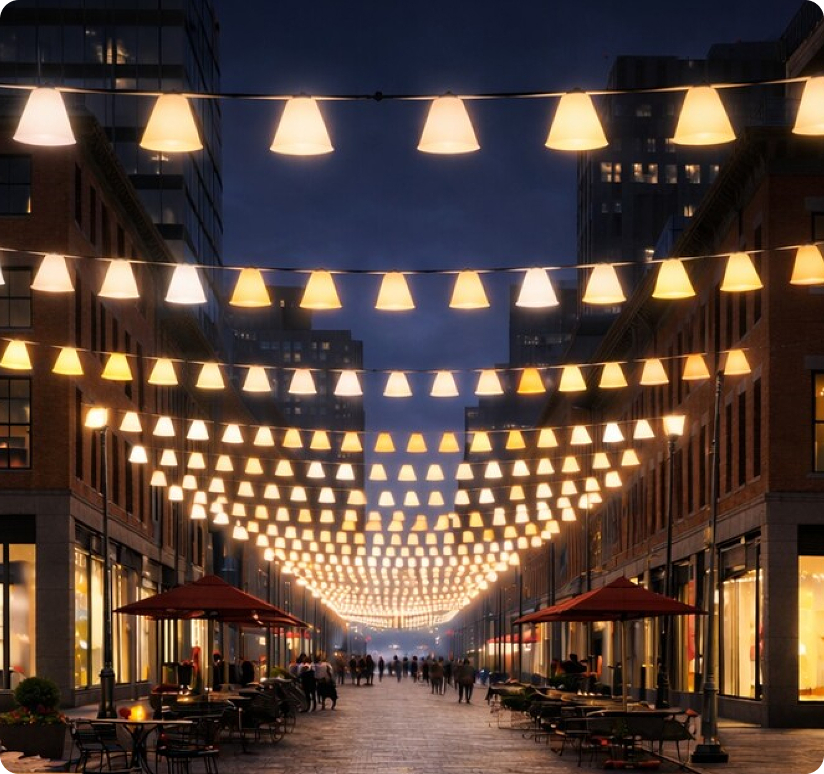

2 Urban & public infrastructure

DOWNTOWN STREETSCAPES

  • Pedestrian-friendly lighting
  • Public gathering spaces
  • Enhanced nighttime identity

MUNICIPAL & GOVERNMENT

  • Plazas, civic centers, and public venues
  • Durable long-span installations
  • Low-maintenance infrastructure

PEDESTRIAN CORRIDORS

  • Walkways and shared streets
  • Improved visibility and safety
  • Flexible overhead mounting options

PUBLIC EVENT SPACES

  • Seasonal activations and festivals
  • Decorative and functional lighting
  • Scalable for temporary or permanent use

SMART CITIES & TRANSPORTATION

  • Transit hubs and station plazas
  • Wayfinding and integrated smart infrastructure
  • Connected public-space lighting networks
Security Bollards Beyond Safety Image

Have a project in mind?

Contact us today and our specialists will help you select the ideal catenary lighting solution,
provide design guidance, and support you every step of the way.

Share your project → Get expert guidance → Receive a tailored solution → Build with confidence

get specification support

Installation Options

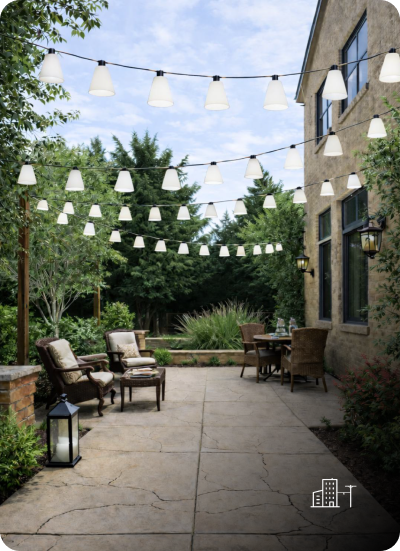

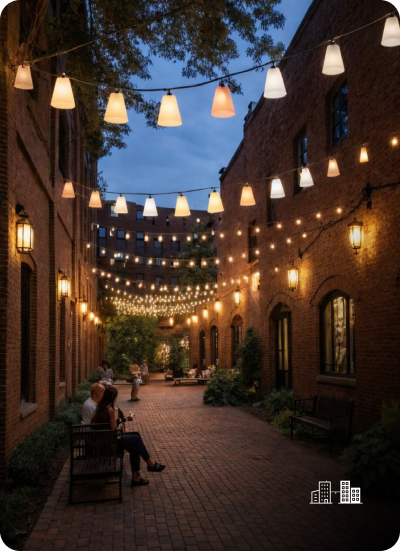

Between-Building Applications
Between-Building

Applications

Between-Building Applications

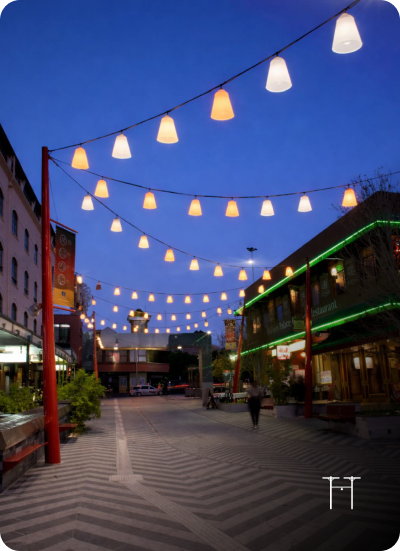

Between-Building & Pole

Applications

Between-Building Applications
Between-Poles

Applications

Site & Structural Considerations

Every catenary system begins with understanding the space. Key factors like span width, existing structures, and environmental exposure directly impact system performance.

What to evaluate:

  • Span & layout: Distance between mounting points and overall system geometry
  • Support structures: Buildings or poles must handle system loads and tension
  • Environmental conditions: Wind, weather, and long-term exposure

Structural performance matters

Mounting points must support both the system weight and dynamic forces such as wind. Proper design ensures stability, safety, and long-term durability.

  • Design for a minimum capacity of 1.5× the calculated load
  • Account for tension, vibration, and environmental forces

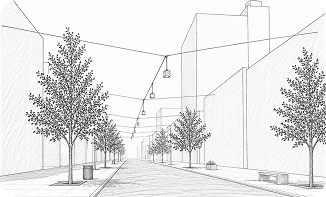

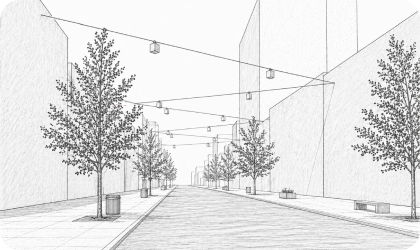

System layouts - Adapt the system to the space

System layouts image

Single-Cable

Simple solution for short spans and narrow spaces

System layouts image

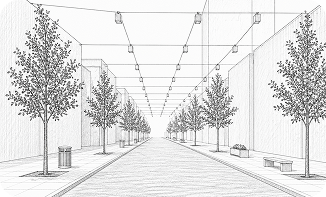

Linear Grid

Structured layout for small to large areas

System layouts image

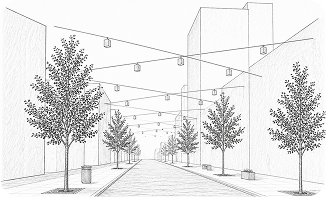

Central Spine

Clean, organized, and visually minimal

System layouts image

Central Ring / Dynamic Layouts

Flexible configurations for large open environments

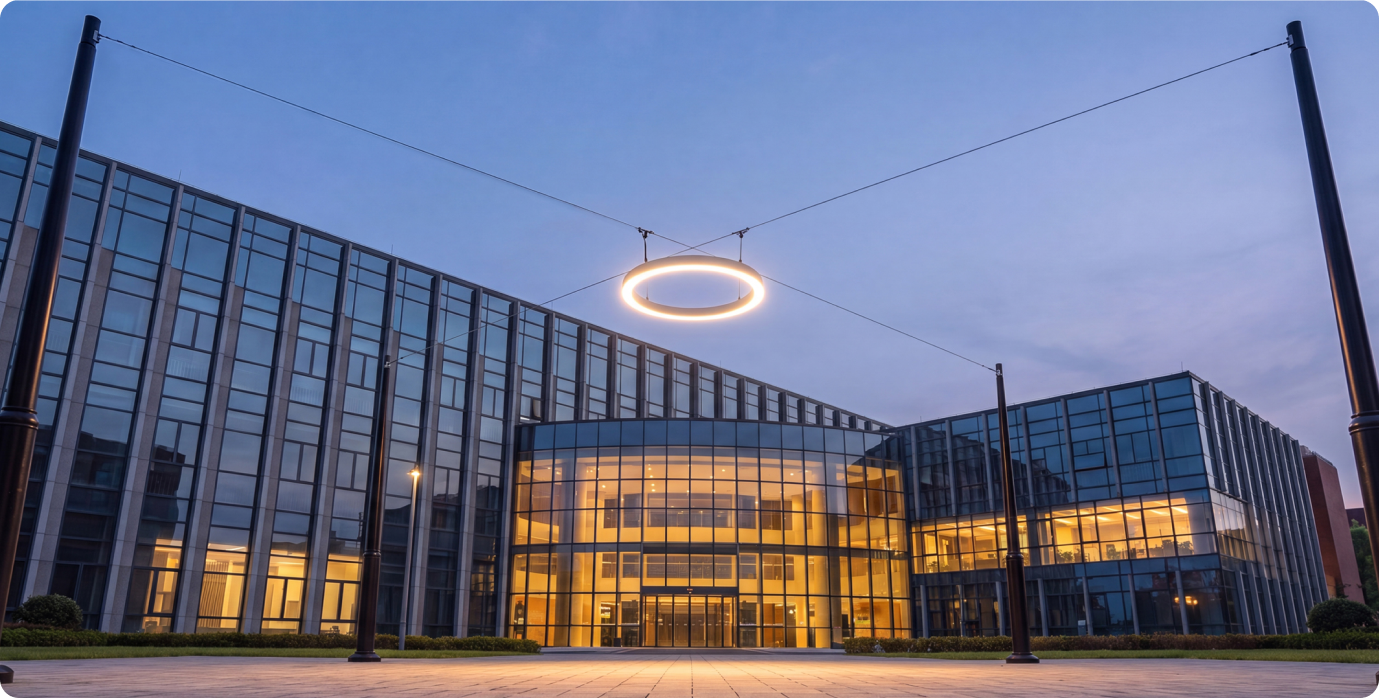

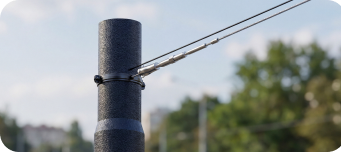

Catenary Lighting System: pole to pole

Security Bollards Beyond Safety Image
  • Key Features:
  • 1.Corrosion-resistant
  • 2.UV-stabilized material
  • 3.Maintenance-free
    (no repainting required)
  • 4.Class II double insulation
Security Bollards Beyond Safety Image

Complete component overview

Everything you need for a reliable, high-performance catenary lighting system.

01 Catenary System Core Hardware

Static Control Icon

Turnbuckles

Static Control Icon

Wire Rope

Static Control Icon

Thimbles

Static Control Icon

Break-Away Safety Sleeves

Static Control Icon

Cross Clamps

Static Control Icon

Clips M10

Static Control Icon

Wire Rope Ferrules

Static Control Icon

Anchor Kit

02 Electrical Accessories

Static Control Icon

Cable

Static Control Icon

Cable Mounted T-Connector

Static Control Icon

Power Connectors

Static Control Icon

Junction Box

Static Control Icon

Junctions

03 RGBW Controls

Static Control Icon

Static RGBW: DINA-DR1 / LITE

Static Control Icon

Motion RGBW: SLESA-U9

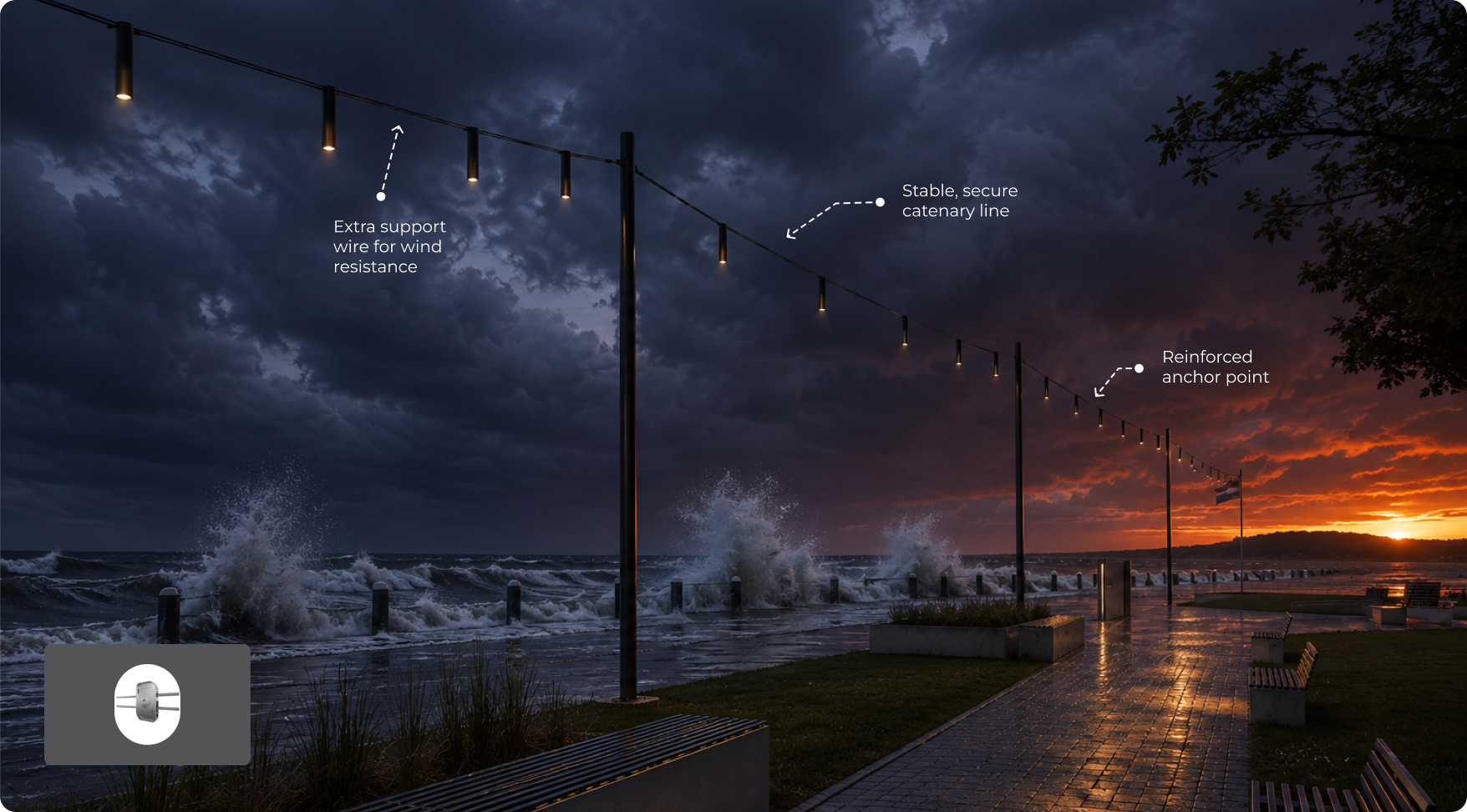

04 Anti-wind solutions

*Extra wire connection on each cable, in both directions, to improve stability and reduce wind-induced movement.

Engineering Stamp

Our catenary hardware is engineered and certified to meet applicable international and local engineering requirements.

Every system is supported by comprehensive structural and static load calculations, ensuring reliable performance, safety, and compliance for each installation.

Based on full static analysis calculations.

Engineering certification tailored to the requirements of each state and project.

FAQs

Size (height, diameter, wall thickness), shape and profile (round, square, tapered, fluted), finish (any RAL powder coat, brushed metals, galvanised, specialty material palettes), light distribution (path marking, perimeter, accent, architectural uplighting), mounting type (surface, embedded, removable, hinged), branding (logos, lettering, custom detailing integrated into the bollard body), and custom design from sketch to finished product.

Four steps. Share your brief — dimensions, finish, light output, budget. We model it — a 3D model or technical drawing for your review, plus material samples. You approve — every detail signed off before production begins. We manufacture — production ready to ship.

Yes. From a sketch on a napkin to a finished bollard on-site — we handle the entire journey. Bring the idea. The team works with architects, lighting designers, landscape consultants, and developers to produce construction-ready bollards from any starting point.

Civic plazas, flagship retail, hospitality, campus environments, cultural institutions, high-end residential, and branded environments. Essentially any project where the bollard is a visible design element that needs to belong to the architecture — not just sit in front of it.

No. Custom design is engineered to the same structural and electrical standards as the standard range. Every bespoke bollard goes through engineering review, applied finish testing, and production-ready documentation before anything is made.

No. Custom design is engineered to the same structural and electrical standards as the standard range. Every bespoke bollard goes through engineering review, applied finish testing, and production-ready documentation before anything is made.
See Catenary Pendant Collection Specify Now
