Pool / Fountain Luminaires

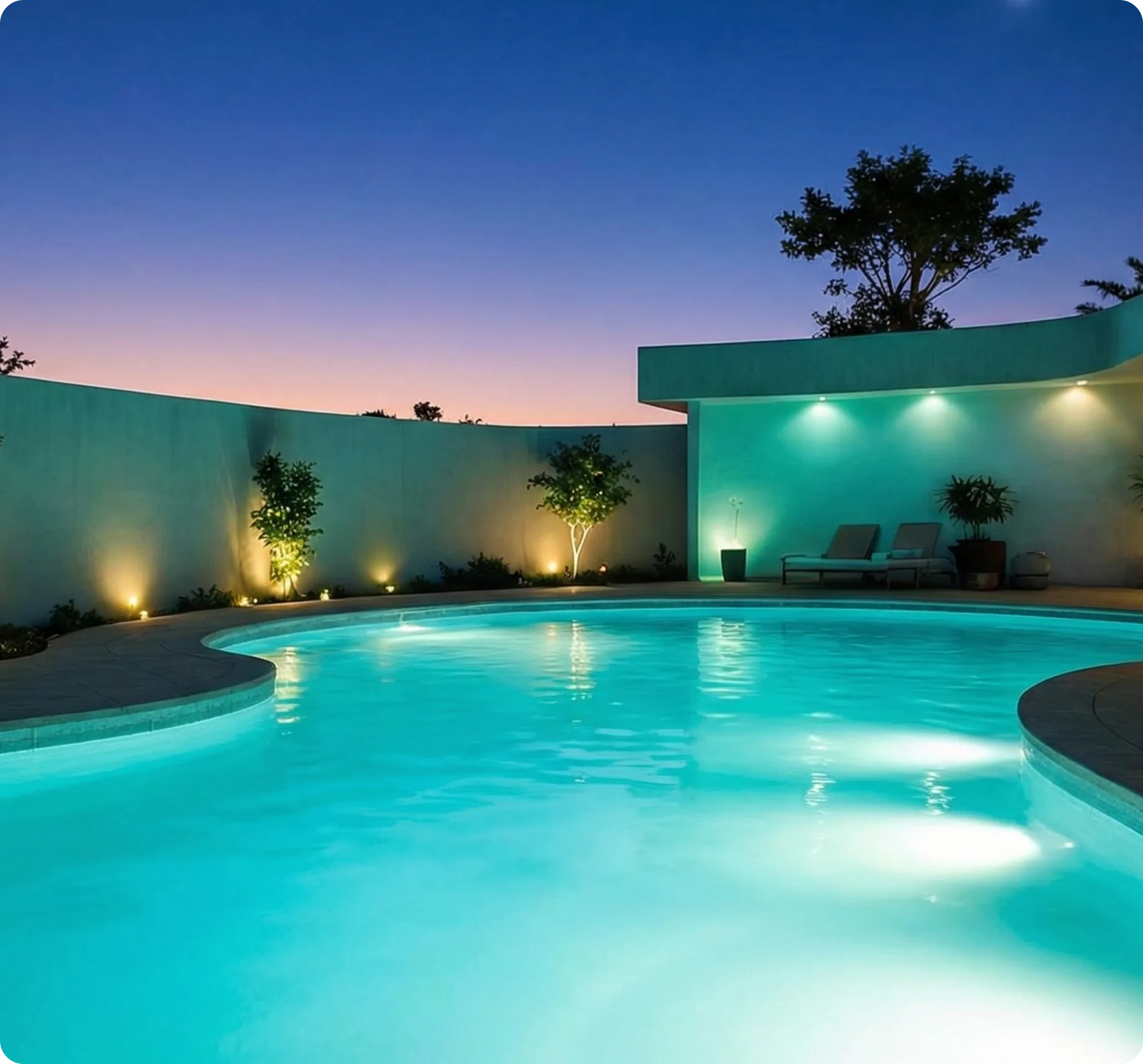

Pool lit by underwater luminaires at dusk

Built for full submersion, not just splash resistance.

Underwater lighting for pools and fountains — DC 24V, IP68-rated, built from hard chrome-plated stainless steel for long-term submersion, not occasional exposure.

Why this collection?

01Four subcategories covering pool, linear, fountain, and spotlight applications

02DC 24V operation — low-voltage by design, not an add-on safety feature

03IP68-rated across the range — full submersion, not just splash resistance

04Hard chrome-plated stainless steel construction throughout

05Built-in thermal protection with automatic shutdown

See Pool / Fountain Luminaires Collection

The full range

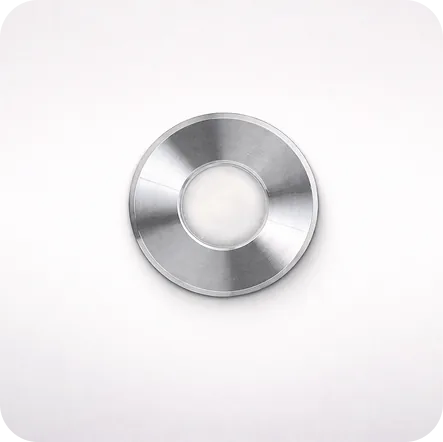

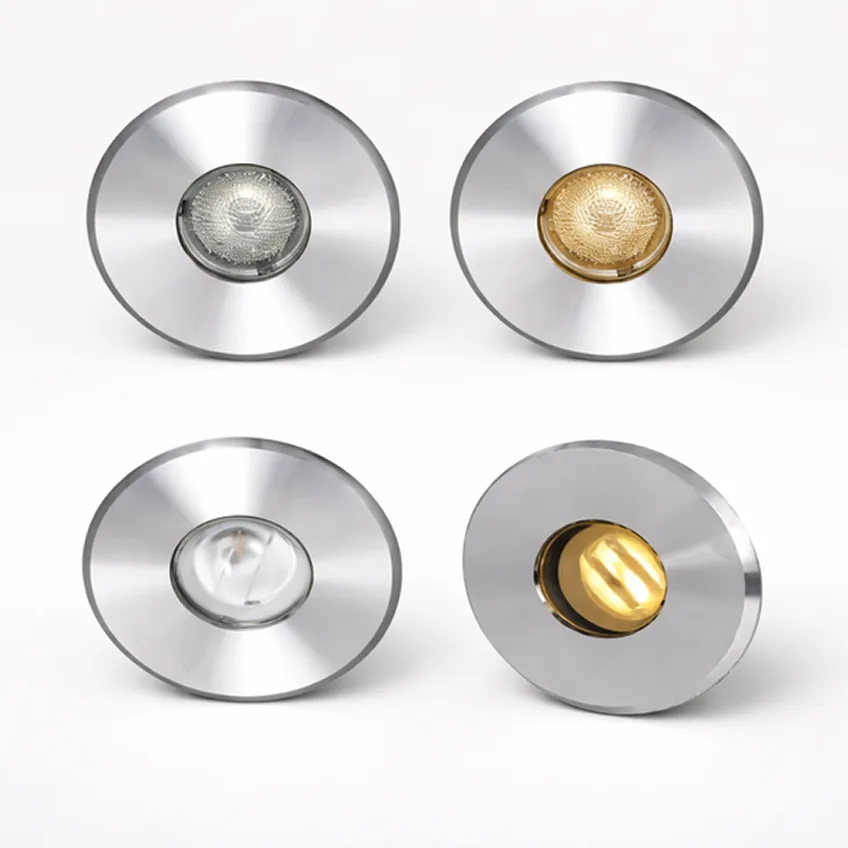

Recessed Pool

Mounts flush into the pool wall or floor — no fixture protruding into the swim space
General illumination role, lighting the water volume rather than a single feature

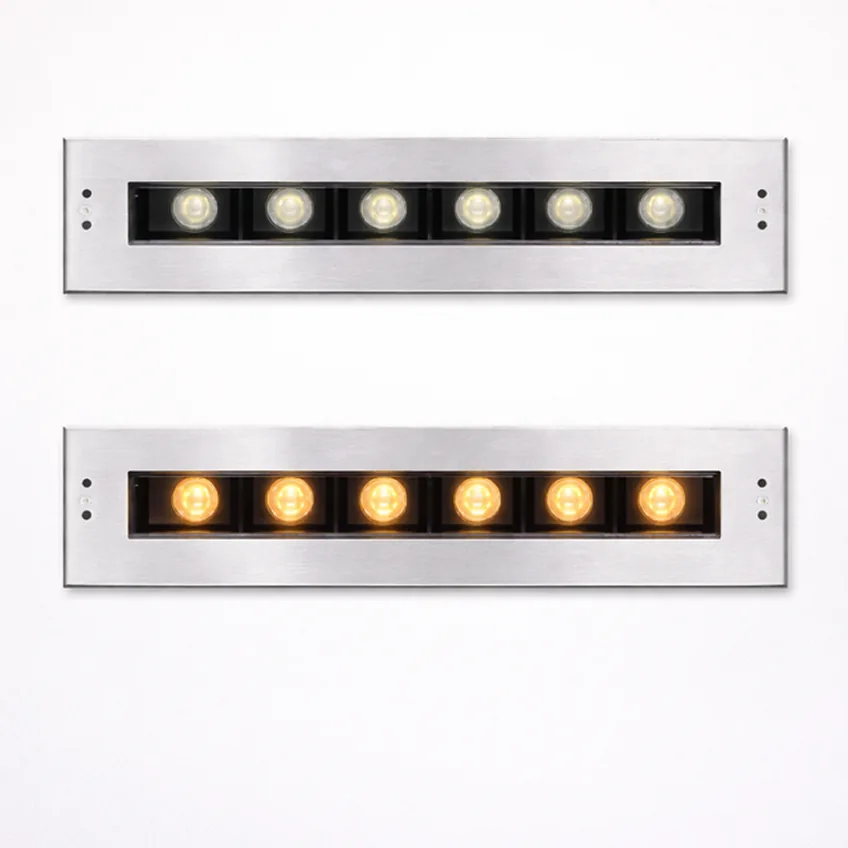

Recessed Linear Pool

An elongated version of the recessed pool fixture, for lighting a continuous run rather than a single point
Used along pool edges, steps, or extended wall sections

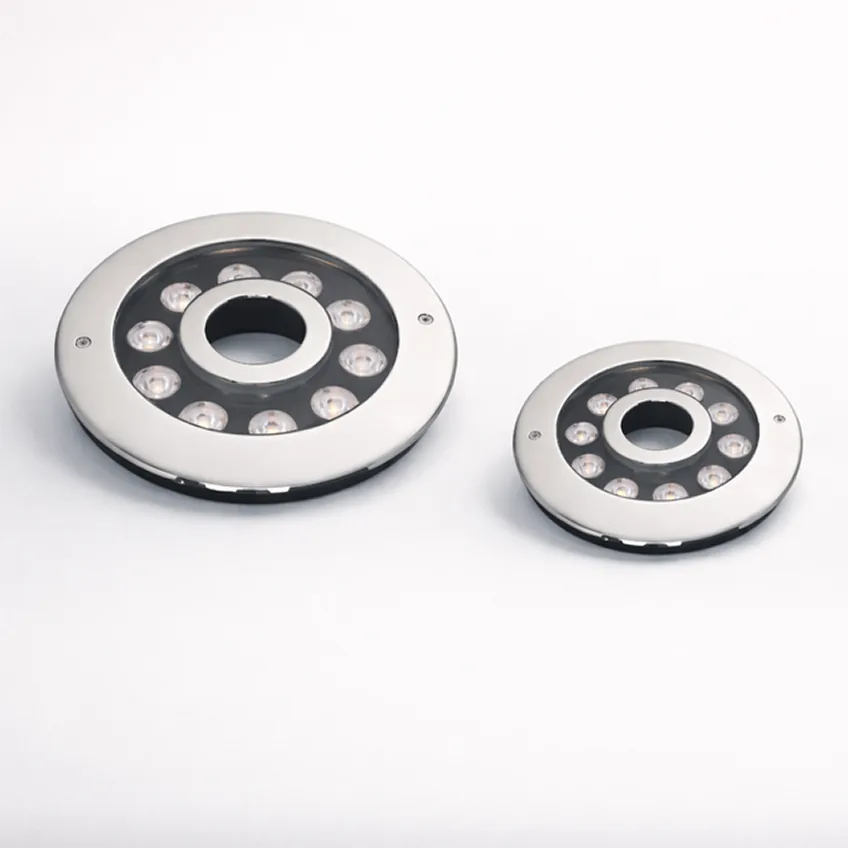

Recessed Fountain

Purpose-built for fountain basins rather than swimming pools
Optics tuned for shallower water and closer viewing distance

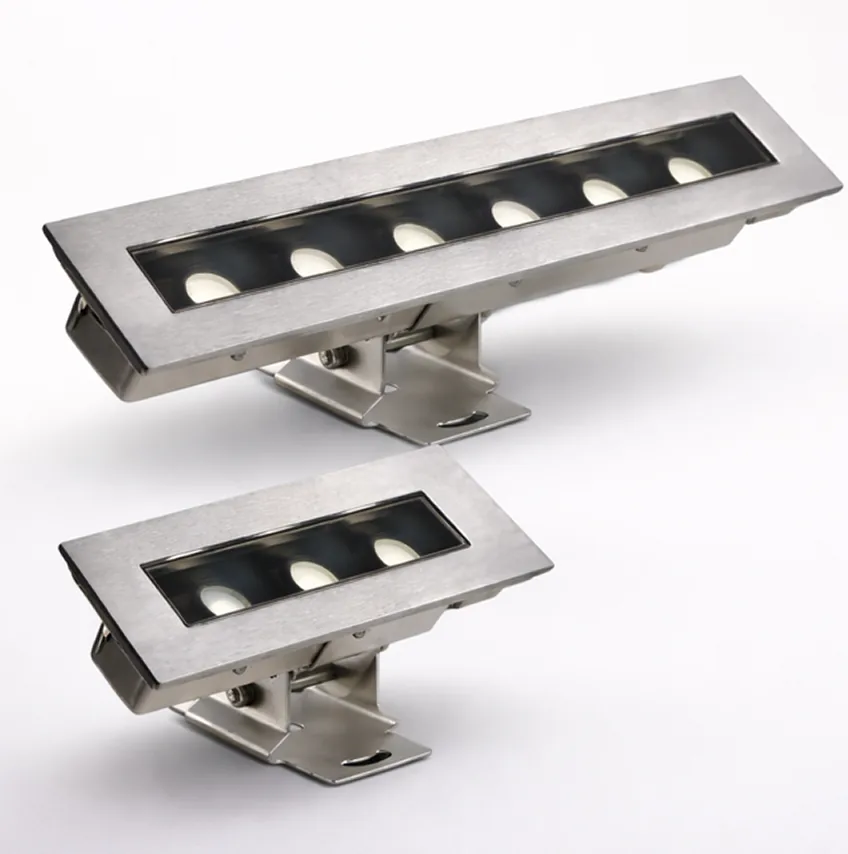

Spotlights

A tighter, directional beam for highlighting a specific feature — a sculpture, a jet, a wall within the water
Same DC 24V, IP68 construction standard as the rest of the collection

Materials

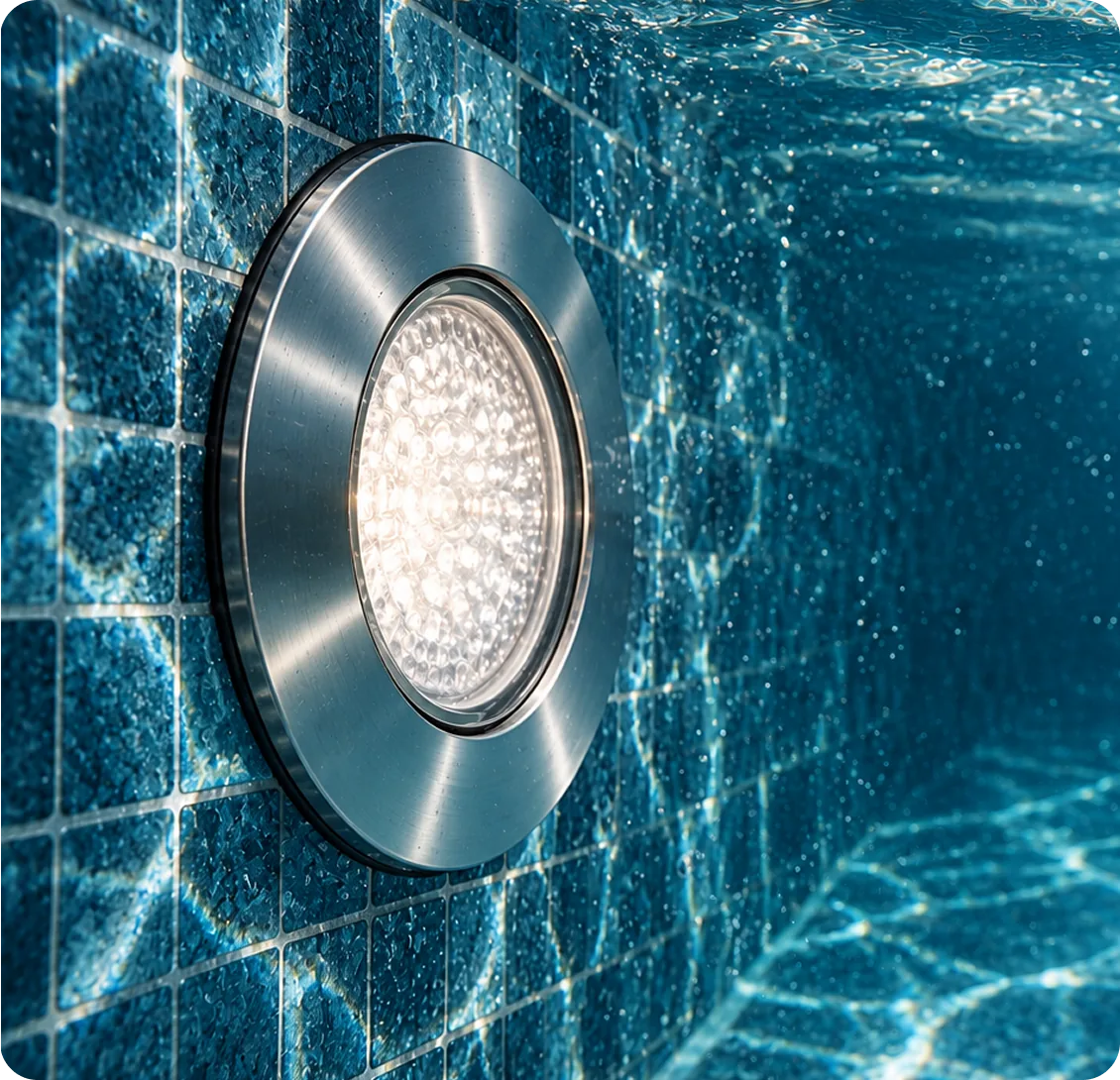

Hard chrome-plated stainless steel (SUS 316L)

Chosen for corrosion resistance in chlorinated and treated water.

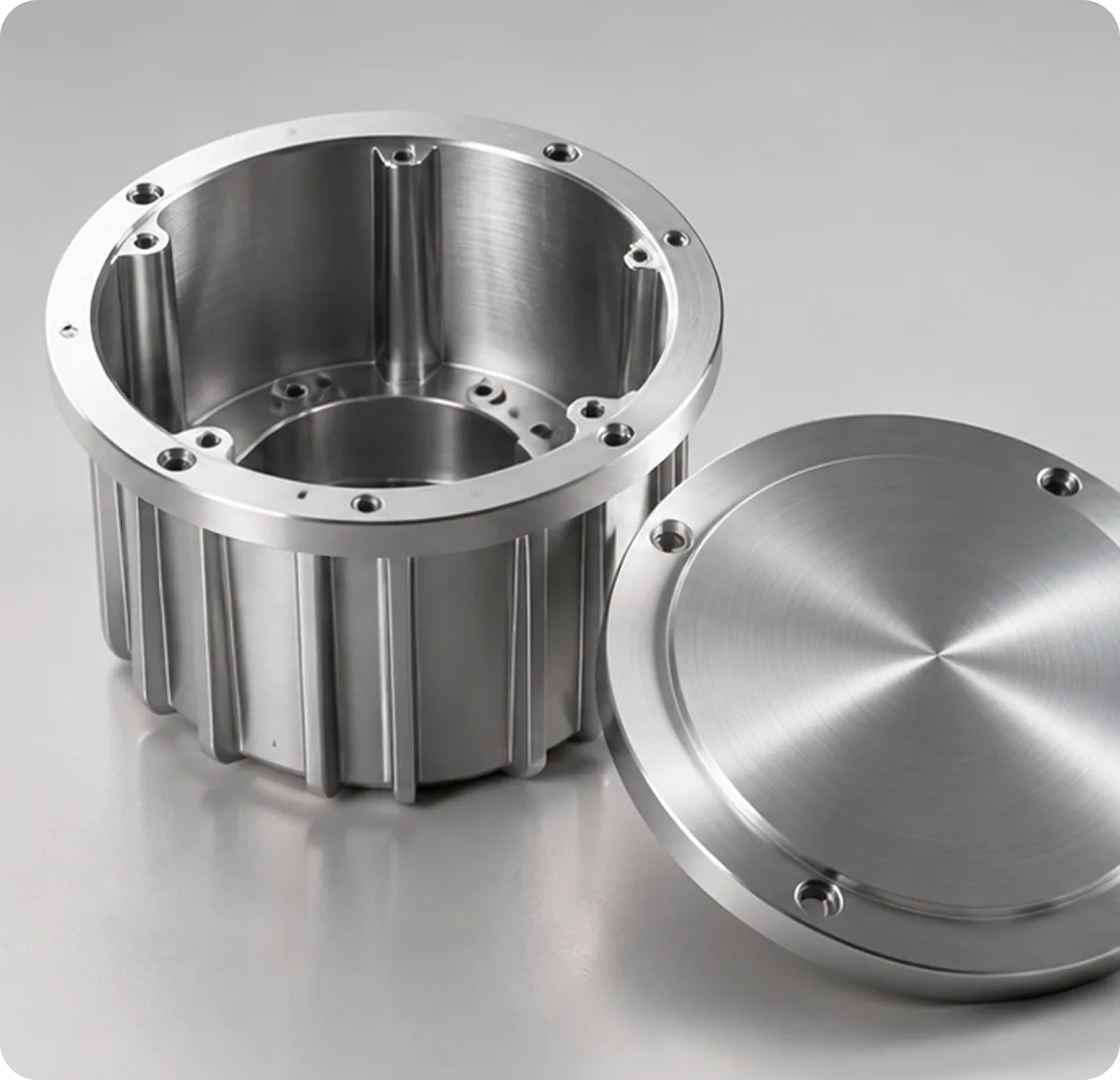

Aluminum

Used in select internal or structural components.

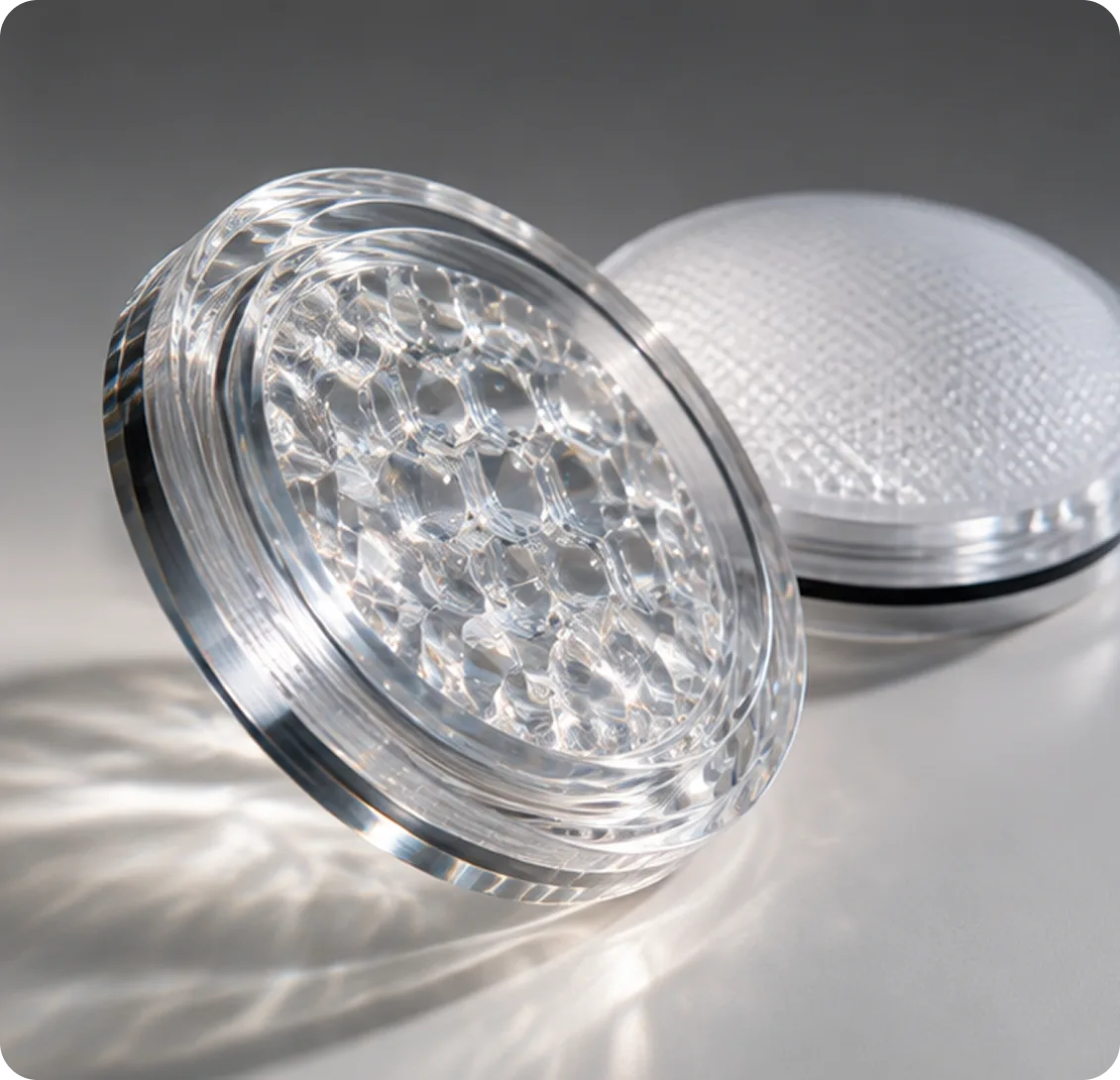

Step-tempered or PC optics lenses

Sealed into the housing, not a separate gasketed cover.

Testing & Quality Control

Every fixture is tested before it ships.

Incoming inspection

Materials checked before production.

In-process inspection

Checked at each stage.

Final inspection

Every unit checked before shipping.

In-house lab testing

IP rating test

Confirms sealing for continuous submersion.

Thermal shock test

Seals hold under rapid temperature swings.

Environmental stress test

Long-term water exposure simulation.

Optics testing

Beam angle and output match spec.

Materials & product testing

Verifies component strength and finish durability

Electrical safety test

Wiring and insulation meet code before shipping.

What sets us apart

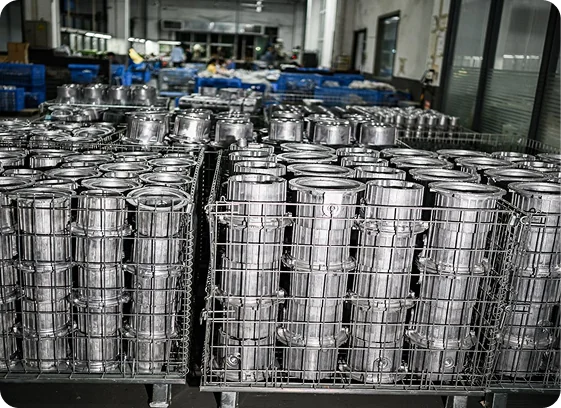

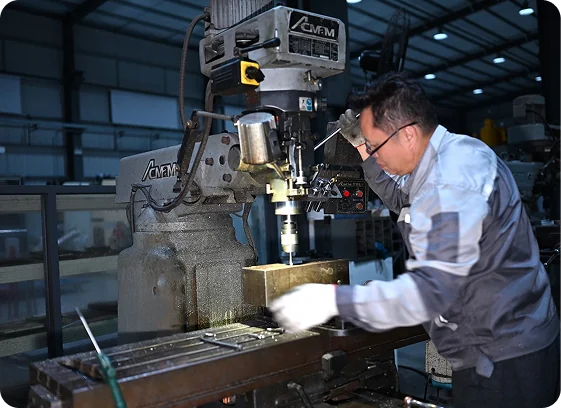

Vertical Integration

Running the full process in-house — tooling, casting, machining, electronics, and finishing — rather than distributing it across outside subcontractors delivers three concrete advantages:

Get Specification Support

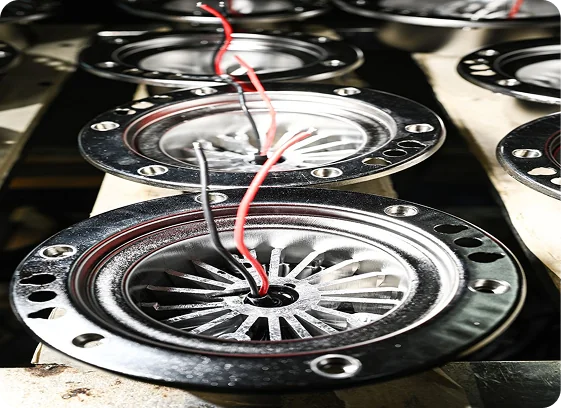

Machined flange, reamed bolt holes and a seated gasket — tolerance and finish quality visible in a single frame.

Cutting our own tooling in-house means no waiting on an outside toolmaker between order and first unit.

Hundreds of housings from one mold — dimensional repeatability is what holds a spec to the five-hundredth unit.

Light Source & Lumen Package

LED throughout the collection

Wattage runs from 2.0W up to 3.6W depending on the model and beam configuration

Lumen output varies significantly by model — from the low hundreds on compact spotlight fixtures up to 5,500+ lumens on higher-output recessed pool models

High-efficiency optics (rated 85%+ on select models) reduce light loss between the LED source and the water

Beam angles

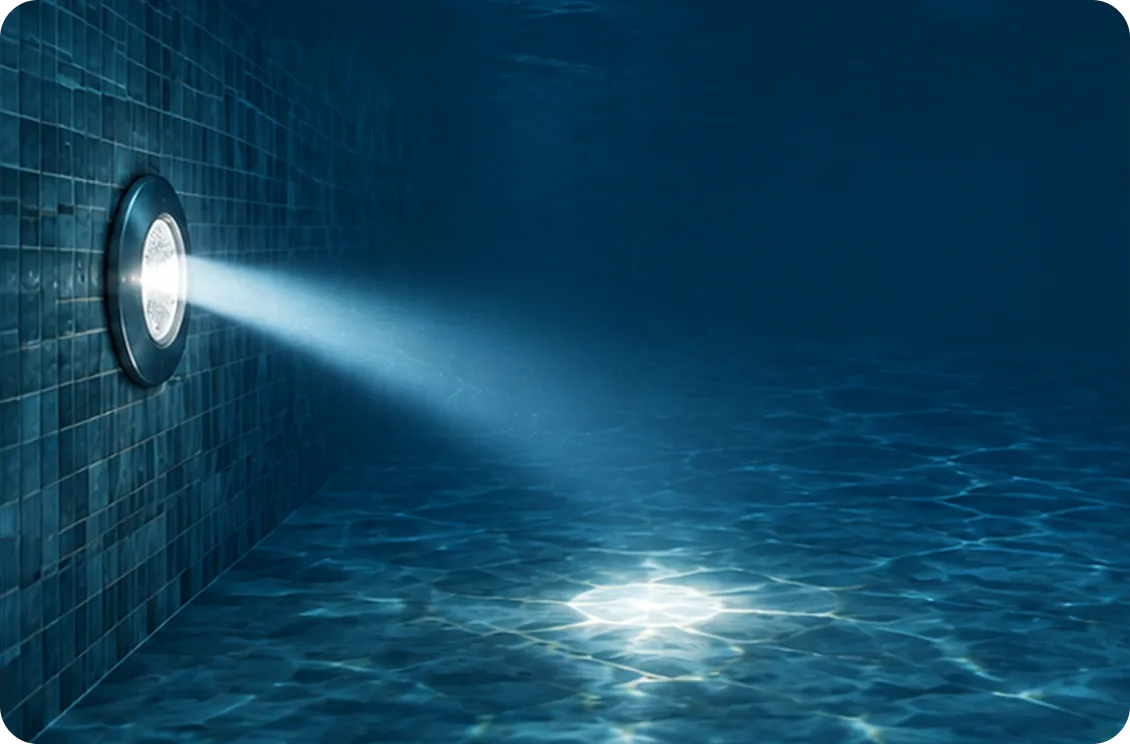

From 15° Narrow

For a focused underwater accent.

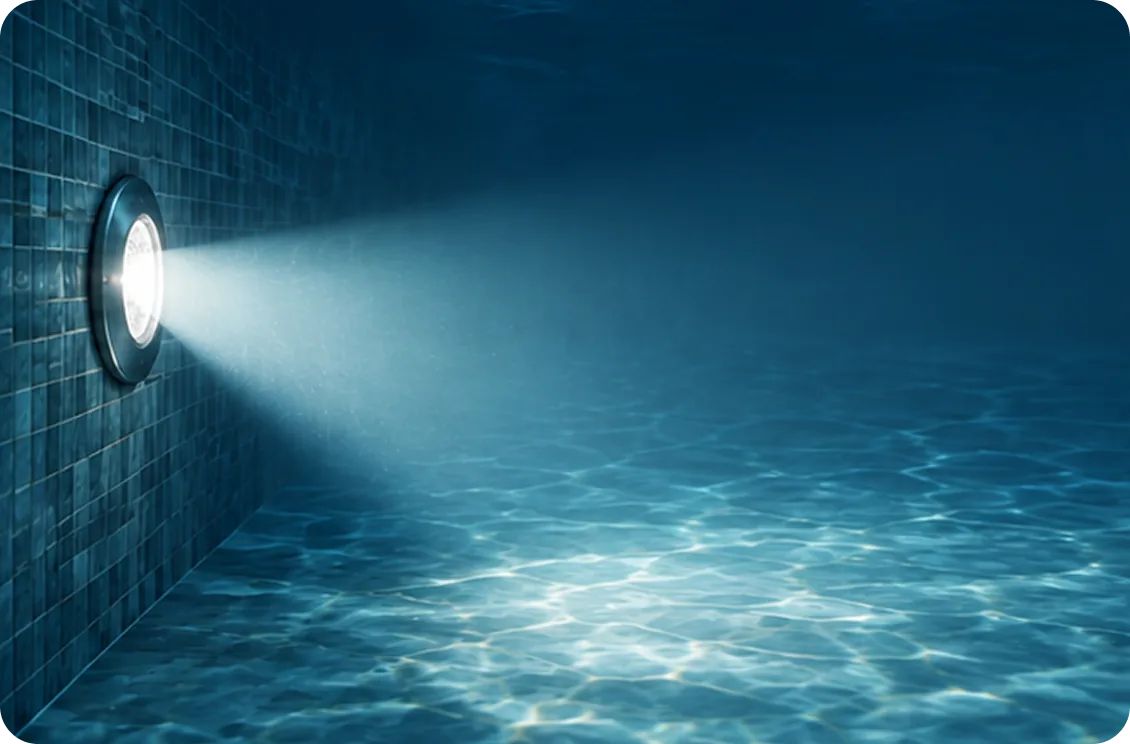

24° – 35° Mid-range

For general area lighting within a pool or fountain.

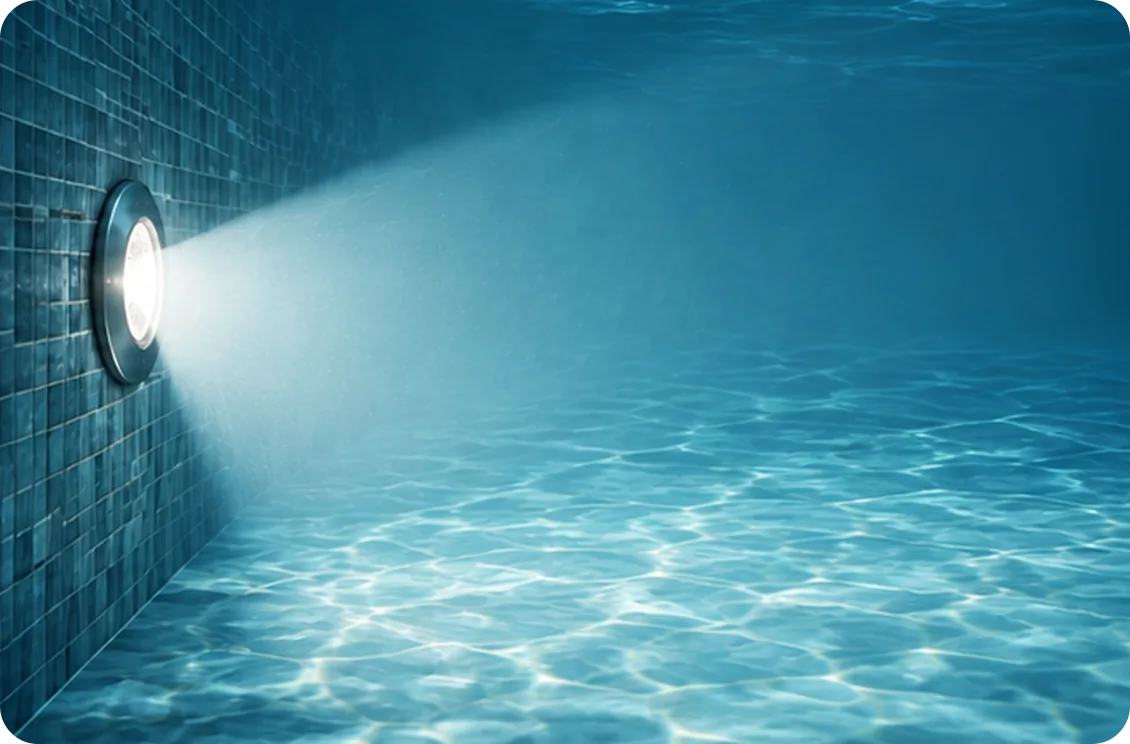

Up to 50° Wide

For broader water coverage from a single fixture.

Beam angle availability varies by model — confirm options on the individual spec sheet.

Dimming Options

0–10V

Simple analog dimming, compatible with most existing control systems.

DALI

Addressable control, standard for zoned commercial installations.

PWM

Flicker-free dimming, including at low output levels.

Water Requirements

Confirm these parameters against the specific project’s pool or fountain conditions before specifying — operation outside this range isn’t covered by standard performance ratings.

Water temperature -4°F to 104°F

Water depth < 3.3 ft

Sealed for continuous submersion.

IP68-rated across the collection — not just resistance to splashing or rain.

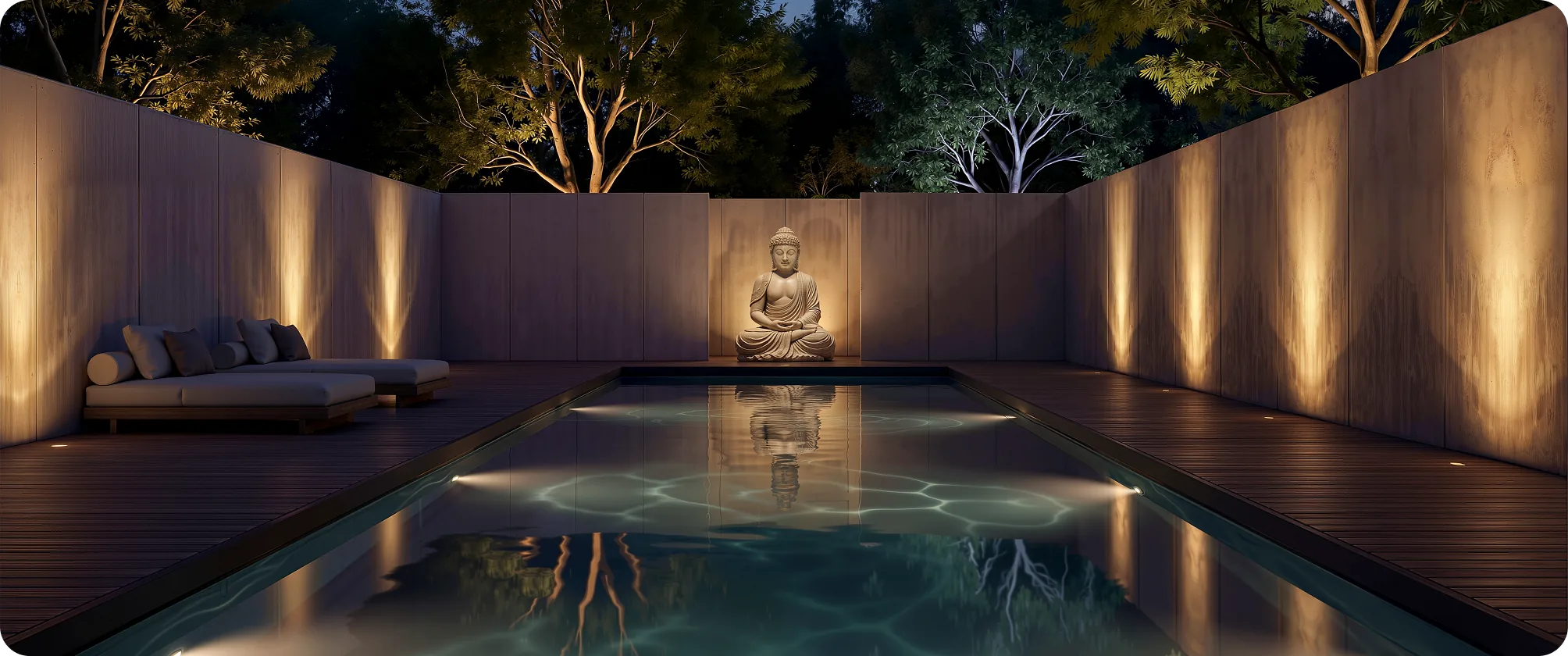

Pool lit at night with underwater and wall luminaires

IP68 across the collection

Sealed for continuous submersion, not just resistance to splashing or rain.

DC 24V low-voltage operation

Reduces electrical risk in a wet, conductive environment.

Built-in thermal protection

Triggers automatic shutdown at 75°C, preventing heat damage if a fixture is run outside water or in insufficient water coverage.

Sealed, gasket-free lens

Avoids the failure point a separate cover introduces over years of submersion.

Questions & Answers

Recessed pool fixtures mount flush into the pool wall or floor and light the whole water volume for general illumination. Recessed fountain fixtures are purpose-built for fountain basins, with optics tuned for shallower water and a closer viewing distance.

Water is a conductive environment, so low-voltage DC 24V operation reduces electrical risk. It is part of the design from the start, not an add-on safety feature.

IP65 protects against dust and water jets, which covers rain and splashing. IP68 is rated for continuous submersion, which is what a fixture installed underwater in a pool or fountain needs. Every fixture in this collection is IP68-rated.

Built-in thermal protection triggers an automatic shutdown at 75°C, preventing heat damage if a fixture is run outside water or with insufficient water coverage.

Each model does a different job. Compact spotlight fixtures produce output in the low hundreds of lumens for accenting a single feature, while higher-output recessed pool models reach 5,500+ lumens to light the full water volume. Confirm exact figures per model on its spec sheet.

Yes. The standard performance ratings cover water temperatures from -4°F to 104°F and a water depth of less than 3.3 ft. Confirm these against the project’s pool or fountain conditions before specifying.

Yes. The collection supports 0–10V analog dimming, which is compatible with most existing control systems, DALI for addressable zoned control, and PWM for flicker-free dimming at low output levels.
